Main uses:

    This machine is one of the main drying equipment for the pretreatment and processing of Chinese patent medicine pills and traditional Chinese medicine. It is suitable for drying and dehumidifying materials in the forms of granules, powders, strips, sheets, pills, seeds and various regular shapes. It can also be used for drying agricultural and sideline products and crops. It is suitable for various drying requirements at high, medium and low temperatures.

 Structure, working principle and usage features:

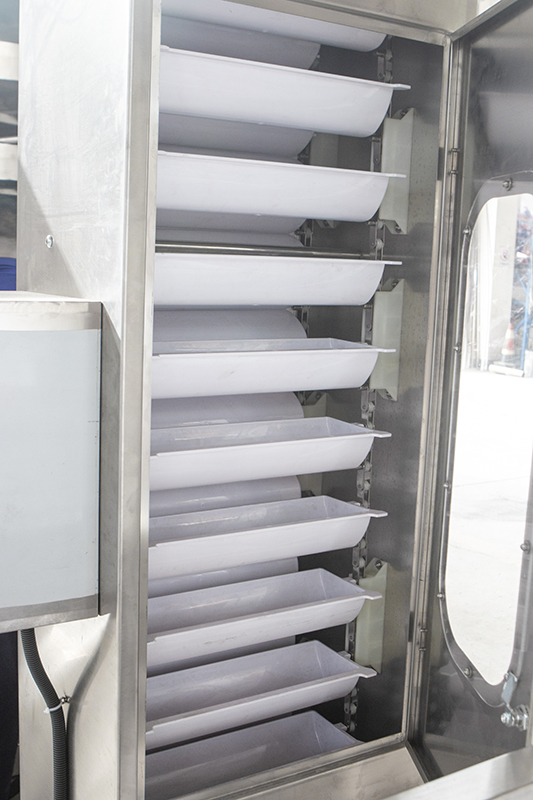

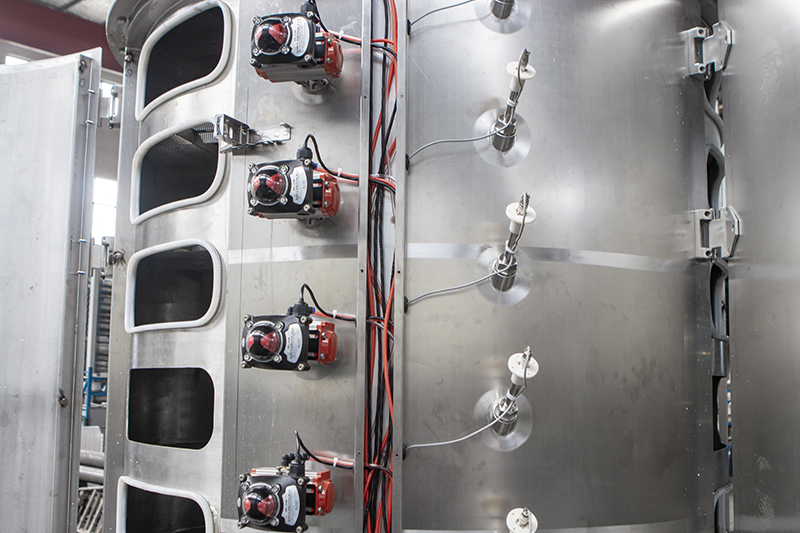

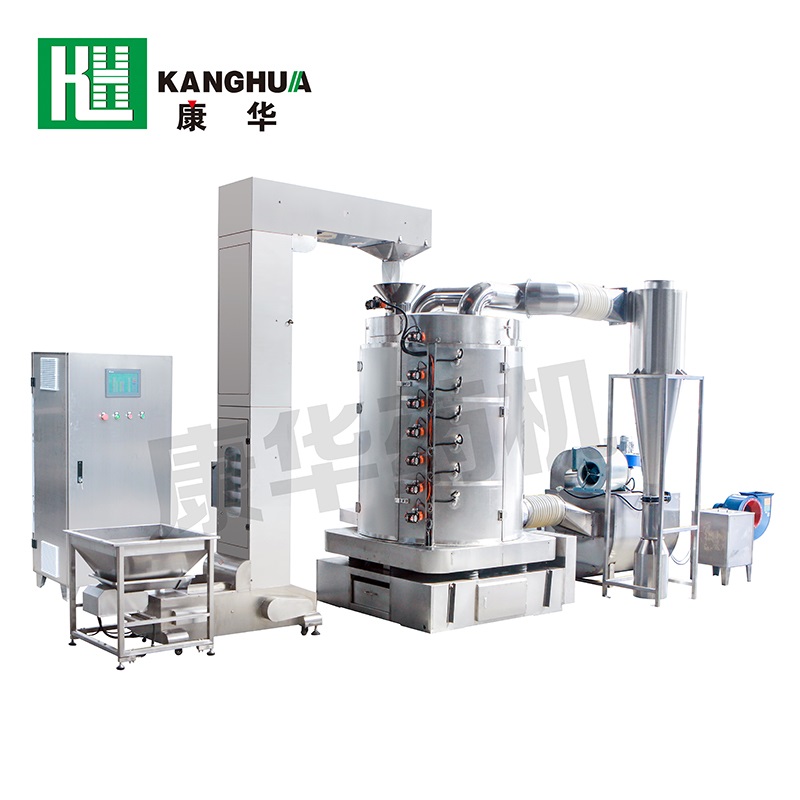

    This machine is composed of an oven, a vibrating base, an automatic feeding mechanism, a dehumidification device, a cooling device, connecting air ducts, a steam heat exchanger, a fan, etc. When the steam enters the heat exchanger for heat exchange, high-temperature dry hot air is generated and enters the oven from bottom to top under the action of a powerful fan. Meanwhile, the material enters the oven from the top under the operation of the automatic suction mechanism. The hot air and the material exchange in countercurrent within the oven. Under the action of the vibrating motor, the material rolls and moves along the Archimedean spiral and fully contacts with the hot air. Thus achieving a drying effect. The upper part of the oven is connected to a moisture absorption device to promptly remove the moisture generated during baking. The oven is equipped with mesh plates to meet the drying requirements of materials of different sizes. The most prominent feature of the fully automatic vibrating drying equipment is that it can fully utilize energy, has good continuous operation, uniform drying of materials, large production capacity, convenient operation, good hygiene conditions, easy cleaning, easy maintenance and wide application range. The whole machine is made of all stainless steel and meets GMP requirements. This machine is suitable for drying materials with moist water, but not for drying materials containing bound water.

Main technical parameters:
